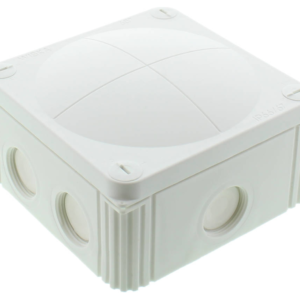

COMBI Junction Boxes

SKU: 10060533

Available in delivery or click&collect

EX. VAT: £6.16

Description

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C – 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 690 V
Rated cross section 6 mm²
Fixing 4 internal openings
Ø cable diameter min 5,2 mm
Ø cable diameter max 17 mm
External dimensions LxWxH 110 x 110 x 66mm
Using for cable gland Using for cable gland
Product Color RAL 9001
WISKA-Order no. 10060533
Type COMBI 607 WH
Packing unit 3
ETIM-Classification EC002600
EAN number 4007685605335
Tariff number 39269097

Additional information

Product

Box

Product Type

Adaptable

Ingress Protection

IP66/IP67

Rated Operational Voltage

690 V

Mounting

Surface

c/w Door/Lid

Y

Number of Doors/Lids

1

Door/Lid Type

Plain

Material

Polypropylene PP

Colour

White

Length

110 mm

Width

110 mm

Depth

66 mm

Operating Temperature Range

-30 to 100 Degrees C

Frequently asked questions

In the UK, common types of electrical connectors include BS 1363 plugs and sockets (standard three-pin plugs), IEC connectors (for computers and other electronics), and various industrial connectors like CEEform connectors.

Electrical connectors in the UK are primarily governed by British Standards (BS), such as BS 1363 for domestic plugs and sockets, and BS EN 60309 for industrial plugs and sockets.

When choosing a connector, consider factors such as the voltage and current rating, the type of equipment being connected, environmental conditions (e.g., indoor vs. outdoor use), and compatibility with existing systems.

Signs of a faulty connector include visible damage (cracks, breaks), overheating or burn marks, loose connections, and intermittent operation. It is important to regularly inspect connectors and replace them if any issues are found.

IP ratings (Ingress Protection ratings) indicate the level of protection an electrical connector provides against dust and water ingress. For example, an IP67 rating means the connector is dust-tight and can withstand immersion in water up to 1 meter deep.
