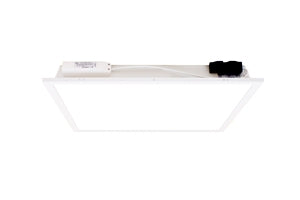

Integral LED Panel Low-Profile Back-lit 600x600 45W 4000K 5500lm with DALI dimming
Description:This 45W and 5500lm Integral LED High Performance+ DALI panel delivers a uniform cool white light across the whole of its surface. Its high level of efficacy (140lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel. The panel is fitted with a polycarbonate diffuser that has been tested by a UK based laboratory and passes BS782-0:2004 Method 508A, as required by Fire Safety regulations. Its lightweight steel and PC design, with integrated DALI driver, means installation is simple and maintenance is minimal. It is an ideal solution for applications using a verified DALI control system.
Partcode: ILP6060B022Range Name: Compact High Performance+Application: Indoor, General LightingMarket Segment: Commercial indoorProduct Type: 600x600Warranty: 5 YrsCE / RoHS: YesProduct Finish: White steelOptic: TP(a) rated Polycarbonate diffuserMaterial: Steel, PolycarbonateConstruction: Folded Mild Steel and Polycarbonate diffuserLength: 596mmWidth: 596mmDepth: 65.00mmWeight (Unpackaged Single Unit): 2 900gLum. Fixing: Recessed in ceiling grid, surface mounted (with accessory)Voltage Range: 220-240VPower Consumption: 45.0 WattsDriver included: Integrated DALICurrent: ACAmpage: 190mAFrequency Range: 50/60 HzWattage Equivalent: 86 WattsPower Factor: >=0.90Dimming: DALICompatible Dimmer(s): DALI systemLVD Certified: YesEN: EN-60598Lumens: 5 500lmLumens per Watt: 122.0lm/WLighting Method: Back-litCorrelated Colour Temperature (CCT): 4000kBeam Angle: 110°Colour Temperature: Cool WhiteColour Rendering Index (CRI): >=80LED Type: Back-litLED Size: 2835Instant on - Less than 1 second: YesLifetime: 50,000 hrsSwitching Cycles: >25,000 XLowest Operating Temperature: -10˚cMaximum Operating Temperature: 40˚cIP (Ingress Protection) Rating: IP44IP Rating (Back/Recessed side): IP40Hg 0% (Mercury Free): Yes
