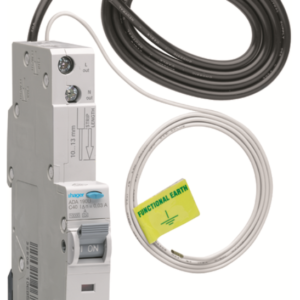

Hager ADA190U RCBO SP A C 40A 30mA 10kA

SKU: ADA190U

RCBO Electronic 1M 1P 10kA C-40A 30mA A Class

Available in delivery or click&collect

EX. VAT: £35.62

Description

Architecture
  • Neutral position
    right
  • Number of poles
    1 P
  • Type of pole
    1 P
  • Fixing mode
    DIN rail type O (symmetrical)
  • Curve
    C
Main electrical features
  • Rated operational voltage Ue
    230 / 240 V
  • Frequency
    50
Voltage
  • Rated insulation voltage
    250 V
  • Max operating voltage
    253 V
  • Rated impulse withstand voltage
    4 kV
Electric current
  • Rated residual operating current
    30 mA
  • Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1
    10 kA
Electric current / temperature
  • Rating current 30°C
    40 A
Dimensions
  • Depth of installed product
    70 mm
  • Height of installed product
    110 mm
  • Width of installed product
    17.8 mm
Power
  • Total power loss under IN
    12.96 W

Additional information

Product

Circuit Breaker

Product Type

RCBO

Pole Configuration

Single Pole (1P)

Mounting

DIN Rail

Ingress Protection

IP20

Trip Type

Type C

Short Circuit Rating

10 kA

Sensitivity

30 mA

Cable Capacity

16 mm2

Height

110 mm

Width

17.5 mm

Depth

70 mm

Current Rating

40 A

Voltage

230 V

Standards

BSEN61009
